Passenger Car Electric Locker Packages
Phone: (503) 231-4808, Fax: (503) 230-0572, E-mail
See where our equipment is located on a typical railway passenger car
| Basic Packages | Generator Controls | Direct Current Panels | Complex Locker Packages | PLC Systems |
Typical Passenger Car Packages
In developing these packages, the idea is to keep everything that is required in one place, keep it easy to use, and yet also have everything that is required for keeping a passenger car operational. They are sized to fit common passenger car electrical lockers in both Budd and Pullman-Standard cars, as well as most other heritage car makers.
While many of these control packages have been built with industrial temperature controls (see examples at left and right) there are many versions of these systems that are available with programmable logic controls (above).
NW-25100
In their simplest form, the complete electric locker packages typically look like the NW-25100 package shown at left. The package includes HVAC controls at the top, 120 volt circuit breakers in the middle of the package, and 480 volt circuit breakers at the bottom. This is an example of having everything that is needed all in one package that can be put into an existing passenger car electrical locker.
NW-25200

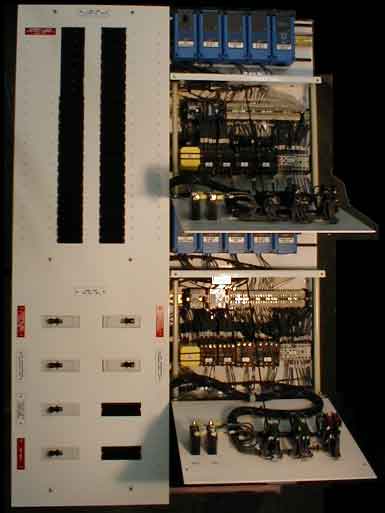

For dome cars, certain lounge cars, dining cars, and other cars that have two distinct areas, we have produced the NW-25200, pictured on the right. This is a package very similar to the NW-25100, but with two zones of HVAC controls.
Add-Ons
It is very common for customers to request a generator control or a DC control package be added to the above packages. There are several methods of doing this, depending on the shape and size of the existing electrical locker.
Variations

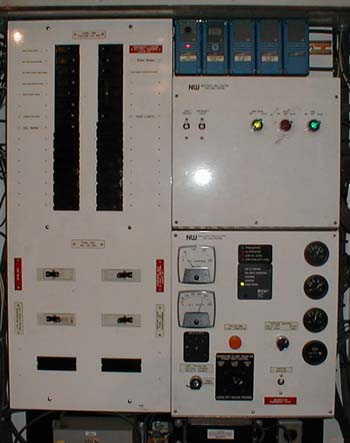

Variations of these popular designs have produced a wide assortment of custom locker packages that are designed to meet specific requirements of particular customers. Here is an example of a NW25-100 built with the circuit breakers beside the HVAC control, and a generator control mounted under the HVAC control:
NW-603-INT
There are a number of cars out there that are fairly satisfactory the way they are, except for the early generation HVAC control system on these cars. For replacement of the standard Amtrak first generation HVAC control, Northwest Rail Electric has produced the NW-603-INT system, which is designed to plug into the same connectors as these old, unreliable units.
Generator Controls
If the car is equipped with a generator, normally the generator control is in the electrical locker, right next to, above or below the HVAC controls and circuit breakers.
Certain cars have tall, narrow electric lockers, and so the generator control may go above the HVAC controls. In other cases, the generator control has gone next to the circuit breakers. Sometimes the generator control switchgear is integrated into the 480 volt circuit breaker panel, which is separated from the 120/208 volt breaker and HVAC panel. The exact location of the generator control relative to the rest of the package changes a little depending on the car and the desires of the car owner.
Our generator controls may be broken into two basic types:
- NW-GC500 series is designed for cases where a power selection system between the HEP trainline and the generator set is required. This allows the car to run off of the generator set while passing HEP power through the car. In almost all cases, a system has been provided for automatic start of an under-car generator set in the event of HEP power failure. The control unit of this type of system is shown at right.
- NW-GC155 series is designed for cases where power needs to be fed to the HEP system directly out of the generator set. This is best thought of as a power car or HEP feed from locomotive type package.
These generator controls generally also include the switch gear required to perform control of the three phase power coming out of the generator. In certain cases, however, Northwest Rail Electric has also provided generator controls with terminals or connectors to interface to a set of circuit breakers and contactors that already exist in a passenger car electric locker. This prevents the passenger car owner from having to purchase the expensive heavy power system components.
Direct Current Control
While today's passenger cars no longer require the 1000 amp 32 volt DC systems they used to have, there is still some need for battery power and other direct current circuits. In most simple passenger cars, the DC control system built in to such packages as the NW-25100 (above) provide the required DC control circuits. In cases where a more complicated control system is required, Northwest Rail Electric has provided suitable control systems. These control systems depend on the needs of the car, and may be custom systems or one of the standard DC packages we have developed. For more information about our DC Control Packages than this brief summary provides, please see our DC Controls section. Here are a few examples of DC packages that have either been created as a stand-alone panel, or added to the NW-25100 series of locker packages:

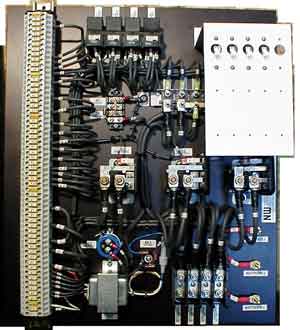

- Battery Isolation System (pictured at left) - in this case there were three sets of batteries: marker light, emergency light, and generator starting batteries. To charge all three sets of batteries off of the common battery charger, yet not discharge them all together, this battery isolation system was developed. The package also includes a small circuit breaker panel for certain circuits, though the labels for the circuit breakers have not yet been applied. A somewhat simplified version of the same type of system, in this case with a battery voltage indicator, is pictured below. The push button below the battery meter prevents the meter light from discharging the battery.

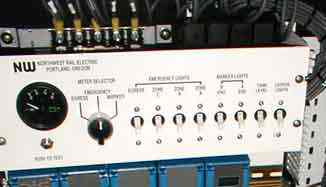

- DC Control Panel (pictured below)- For passenger cars with marker lights, ditch lights, emergency lights, and many other battery loads requires a DC circuit breaker control panel. In addition to the photo below, we also have a page that describes a few of our various DC Control systems.
Custom Locker Packages

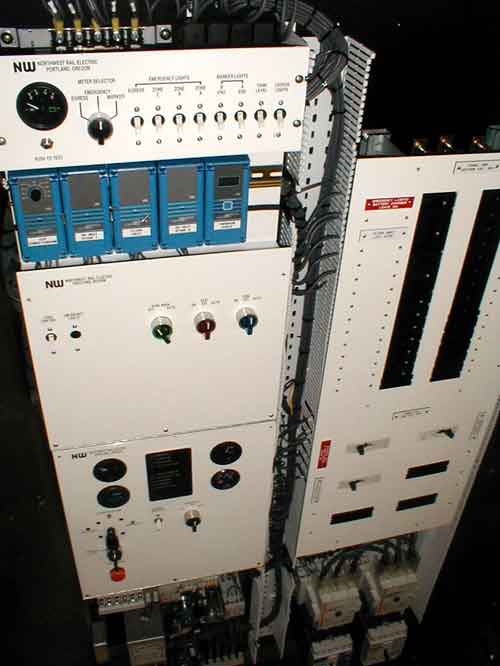

From time to time, we produce an NW-25100 type package with a generator control, and direct current control or battery isolation system combined on a single panel.

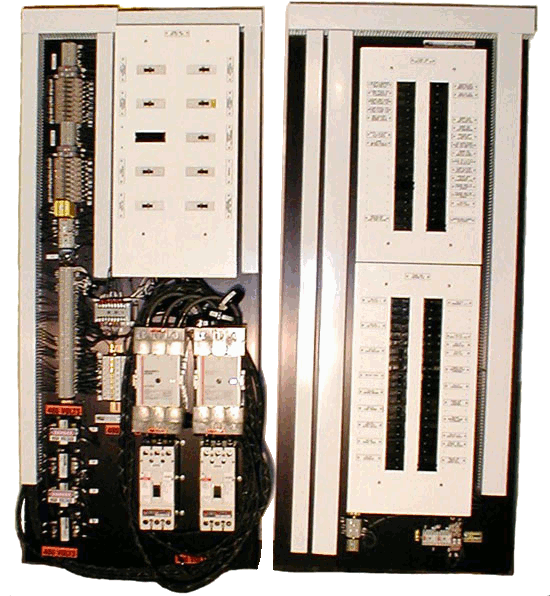

Our true custom passenger car electrical systems are built to suit various unique needs. These have been varied in size, shape, and complexity, so that we have an Entire Web Page devoted to our Custom Packages with a number of photos of a selection of the railroad passenger car systems we have made over the years. The two section panel pictured below is only part of this package. 480 power from the generator or HEP is from the bottom, and feeds the 480 volt circuit breaker panel. The 208v/120v panel is on the right. The cord that you see coiled around the contactors will be used to connect this part of the system to the control panels once the system is installed in the car. It has a connector on the end for ease of installation.
The package shows extensive 480 volt circuit breakers on the left, including HEP Main and Generator breakers, various 480 volt breakers for such loads as the HVAC system and the oven in the kitchen, and part of the system for automatically starting the generator if the HEP system fails. On the right there are a number of 120 volt and 208 volt breakers for a number of lower voltage loads. The HVAC and generator control systems are on a third panel that isn't pictured.
It is difficult to describe these complex systems very well in general terms, since each is very unique. More is described, however, on our Custom Locker Packages web page.
PLC Packages
Over the years, Northwest Rail Electric has produced a number of systems involving Programmable Logic Controllers (PLCs). There are a wide variety of packages that have been produced that perform a number of different functions. Each of these systems have been unique in their own ways. For more information, please see our PLC Systems web page.
