High Performance Wire and Cable

for the transit and railroad passenger car industry

distributed by Northwest Rail Electric

Phone: (503) 231-4808, Fax: (503) 230-0572, E-mail


Railroad and transit industry electrical wire must meet a number of special requirements. It must not easily catch fire, and if it does burn it must not release toxic smoke. If the source of fire is removed, the wire insulation must self-extinguish. Various other requirements must be met, including abrasion resistance and resistance to contact with diesel fuel. The preferred substance that meets all of the requirements is cross-linked polyolefin insulated wire.

The following information was supplied by General Cable, which supplies the majority of our railroad grade electrical wire. Polyrad XT is a registered trademark of General Cable. Other manufacturers of railway approved wire exist, and the specific details of their process, and specific approvals, will be somewhat different. This information should therefore only be taken to be an example of what is available. Generally, Northwest Rail Electric will use General Cable Brand Rex Transit Cable, but equivalent cable from another manufacturer may be substituted if required due to availability, customer specification, or other reasons.


GENERAL CABLE BRAND REX POLYRAD XT LOCOMOTIVE/TRANSIT WIRE AND CABLE

| Product Description | Product Features and Benefits | Applications |
| Insulation System | Approvals | Sizes Available |

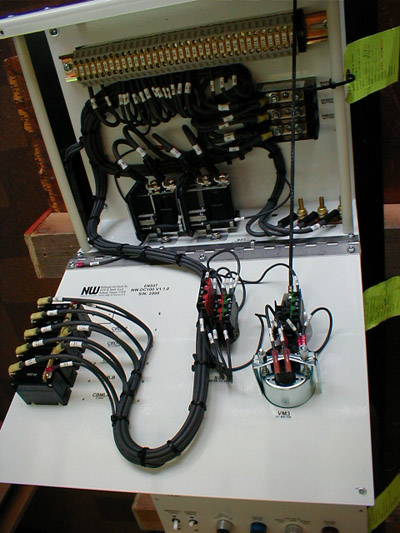

Northwest Rail Electric battery control package for railway passenger cars

Product Description

General Cable Brand-Rex Polyrad XT is an insulation system which utilizes thermosetting polyolefin compound crosslinked by radiation. This process produces maximum flame retardance, oil and chemical resistance, low smoke properties and outstanding mechanical toughness. Polyrad XT's excellent overall balance of properties is generally not attainable with conventional insulating systems. Polyrad XT single conductor locomotive and rapid transit car cables are rated either 110 Deg. C or 125 Deg. C and supplied in both 600 volt and 2000 volt constructions.

Multiple conductor constructions are available.

(NOTE: Northwest Rail Electric DOES NOT STOCK MOST SIZES OF 2000 volt insulation wire, or most types of multiple conductor forms. We sometimes do have certain types in our shop, depending on what we are building, so it doesn't hurt to give us a call to see if we have the particular size you are looking for.)

Product Features and Benefits

General Cable Brand Rex Polyrad XT wire and cables combine superior properties and performance for locomotive, rapid transit and offroad equipment applications.

Applications

  • Ideally suited for use where environmental factors require cable characteristics to perform with a high degree of flame-retardancy and excellent moisture-stable electrical values, where reliability is the major concern and where maximum performance will be demanded.

  • Engineered and manufactured for both original equipment and retrofit use in power and control circuits, and in motor leads.

  • Extensively found on all types of heavy- and light- rail cars, rapid transit cars, diesel electric locomotives, wayside equipment and off-road vehicles.

    Insulation System and Construction

    General Cable Brand-Rex Polyrad XT insulation features a highly engineered and refined polyolefin formulation used in conjunction with soft annealed, tinned copper conductors per ASTM B-33. This insulation system combines outstanding flame retardancy with excellent moisture-stable electrical values. The construction is further enhanced by radiation crosslinking which transforms the original thermoplastic into a rugged thermosetting material. The result is a compound with excellent thermal stability - it will not soften or flow at elevated temperatures. Polyrad XT also has increased toughness, greater resistance to cut-through, superior oil resistance and improved low temperature performance.

    The Radiation Process

    Northwest Rail Electric PLC system for railway passenger carsIn radiation crosslinking, a scanner directs a high energy electron beam from a power source accurately and uniformly over the wire insulation. General Cable has perfected this technique enabling us to effectively process small wires with thin insulation walls. The same technology is also used to measure the precise degree and uniformity of crosslinking.

    Approvals

    General Cable Brand Rex Polyrad XT cables are manufactured, tested and inspected in accordance with the latest issue of the following standards:

    AAR S-501 and AAR RP-585
    Wiring and Cable Specification, American Association of Railroads

    ICEA S-95-658
    Nonshielded 0-2 kV Cables

    IEEE 1202
    Flame Test at 70,000 BTU/hour

    IEEE 383
    Flame Test at 70,000 BTU/hour

    UL VW-1
    Flame Test

    BSS 7239
    Toxic Fumes

    SMP 800-C
    Toxic Gas Generation

    ASTM E662
    Standard Test Method for Specific Optical Density of Smoke Generated by Solid Materials

    49 CFR Part 238
    Flame and Smoke Requirements

    Sizes Available

    General Cable Brand-Rex Polyrad XT is available with the following insulation ratings: The table below lists the sizes available as well as the rated current capacity in relation to the size and insulation temperature rating of the wire.

    Items in Italics are not available as a standard product, but are available as a custom order. Minimum quantities may be required.

    Northwest Rail Electric DOES NOT USUALLY STOCK 2000 volt wire. We can obtain this voltage insulation on special order, but the order will take some time for processing. We may also have incidental 2000 volt stock, depending on what products we recently built.


      APPROX     APPROX            CABLE AMPACITY
       AREA       AWG             SINGLE CONDUCTOR
    (CIRCULAR    SIZE        FREE AIR 40 DEG C AMBIENT
       MILS)                 110 DEG C       125 DEG C
    --------------------------------------------------
      1197+      20             24             26
      1900       18             30             32
      2601       16             35             38
      3831       14             41             44
      6088       12             52             56
      10910      10             73             79
      14950      8              85             92
      24640      6              120            130
      36760*     5*             160*           173*
      42420      4              168            181
      50500*     3*             199*           215*
      60600      2              214            231
      90900*     1*             268*           289*
      111100     1/0            304            328
      131300     2/0            338            364
      181800     3/0*           414*           446*
      222200     4/0            472            509
      262600*                   524*           565*
      313100*                   590*           636*
      373700*                   657*           708*
      444400*                   734*           791*
      535300*                   828*           893*
      646400*                   931*           1004*
      777700*                   1047*          1129*
      929200*                   1168*          1259*
     1111000*                   1254*          1352*


    * This size is available only by special order. It is not stocked by Northwest Rail Electric. Lead times may be very long for some special order sizes, and minimum quantities may be required.

    + Approximate size.


    We also manufacture and distribute a number of other products used in converting railroad passenger cars to Head End Power:
