What is Head-End Power?

Head-End Power is a system of electrical power distribution on a passenger train in which a power source in a central location on the train (usually a locomotive or a generator car) generates all the electricity for "hotel" power (non-traction, or non-motive power uses) needed by the train. Virtually all modern passenger trains have their electrical needs met in this fashion. Even some DMU and EMU cars are equipped with HEP in some form to allow one car to provide power to other cars in the event of an equipment failure. The acronym HEP is in common usage throughout North America.

At right is a commuter train being fed from a Northwest Rail Electric NW-YPHP "Yard Power" system while it is in evening storage.

Providing power on a passenger train requires some careful design for electrical distribution:

• Each car must be designed to carry the full electrical load of the train, because each car has the potential to be placed directly next to the generator car or locomotive that supplies the electrical power. It's not possible to reduce distribution capacity as the distance gets further from the source, as utility companies with a fixed infrastructure are able to do.

• Each car must have compatible electrical plugs and sockets at each end.

• These plugs and sockets must still be compatible with each other and must still work should one of the cars be separated from the train and turned around and rejoined (except for the case of certain tourists railroads who don't exchange cars with any other railroad companies and never turn their cars).

• The jumper wires to go between the plugs and sockets must be designed to withstand operation in a very harsh environment.

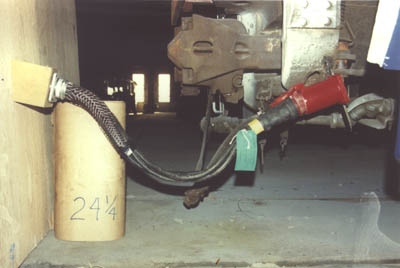

• The jumper wires must be long enough to provide enough slack for connection and disconnection, but they must not be so long as to drag on the ground while the train is moving.

• The connections must be positioned so that the cables do not rub against or come into contact with various other parts of the passenger car, including such items as the air brake lines, couplers, etc.

• There needs to be some method of protection for the system should one of the connectors be disconnected.

Due to the need for compatibility between the various cars on a train, as well as common safety concerns (a safety problem on one car can be a problem for the entire train), Amtrak has produced a series of passenger car standards. These standards cover the various requirements for HEP (as well as other areas) that need to be followed to produce a railroad car that can be added into an Amtrak passenger train without any compatibility or safety problems.

For those wanting to convert their passenger car to full Amtrak compatible HEP, we have a List of Parts required.

Other HEP systems are also in use in North America outside of Amtrak. These include Canadian systems, as well as tourist railroads that want the advantages of HEP without the expense of the full power capacity of Amtrak style HEP. We have a list of various HEP configurations used. Northwest Rail Electric equipment has been used on all of the systems mentioned on that page.

HEP Products From Northwest Rail Electric

We have a list available of the materials and parts required to convert a railroad passenger car to head end power. This list only gives those parts for conversion to operate on Amtrak, and does not include such things as mechanical inspections, converting electrical systems on the car to operate off of the HEP power, and air conditioning conversion.

The following products are distributed by Northwest Rail Electric for use in the Head End Power market:

• High Performance Wire and Cable that meets the Amtrak specification for HEP wire.

• Stadco Generators for use in generator cars to supply HEP or on individual cars.

• HEP Power Plugs

• HEP Power Receptacles.

• HEP Receptacle Housing.

• Portable HEP Jumpers.

• Communication and Multiple-Unit connectors, housings, cables, mounting boxes, and wire.

• Various HEP Hardware and Accessories, including:
  • HEP Connector Mounting Plates
  • HEP Splice Boots meeting Amtrak specifications.
  • Multiple Unit and Communications Connector Mounting Boxes
  • Juction Boxes that meet the needs of Communications and MU termination
  • Wire Cleats and Clamp Plates (standard types for virtually all HEP applications as well as custom designed cleats for unusual systems are available)
  • Wire Lugs, particularly including those required specifically for Amtrak-compatible HEP
• Amtrak approved HEP under car junction boxes.

• HEP Yard Power Units (also called Wayside Power Panels or Ground Power) These systems provide power to the HEP systems on a passenger car or a full train while it is in the shop, storage yard or long term station stops.

• Head End generator control packages for use on railroad cars and/or locomotives that send power to a multiple-car power line. The NW-GC500 series is designed for situations where automatic transfer of power sources is desired. This is used, for example, on passenger cars that have a back-up generator, and automatic start of the generator is desired when the HEP system is disconnected or fails. The NW-GC155 series is designed for dedicated power car systems, where the generator is only used for feeding the HEP line.

Related Products from Northwest Rail Electric:

• Electrical Locker Packages for converting a passenger car electrical system to HEP

• Generator Controls for running passenger car generators and providing power to the HEP system

• Evaporator Units and Under-Car Condensers for those converting their railroad air conditioning systems to run on HEP.

• Under-Car Diesel Generators for providing power to the HEP trainline.

• Yard Power Units are used to power the HEP trainline when a car is in the shop or when a train is laying over at the station.

• Rubber Tube Diaphragms for those upgrading passenger cars to modern car end standards.
